0445120007 0445120020
0445120018 0445120029
0445120032 0445120059
0445120103 0445120120
0445120113 0445120123
0445120114 0445120125
0445120208 0445120231
0445120210 0986435501
0445120002 0986435502
0445120008 0986435503
0445120043 0986435505
0445120089 0986435508
0445120019 0986435523 etc
This B12 is for Bosch common rail injectors. You could also order
based on the thickness you need(10pcs/thickness).
We supply common rail adjust shims for Bosch and Denso common rail
injectors:
* For Bosch injectors:
B11, B12, B13, B14, B15, B16, B17, B22, B25, B26, B31, B37, B40,
B41, B42,
* For Denso injectors:
B21, B23, B24, B27, B45
You could choose the specification for each model based on what you
need.
We also select the most popular models and specification as a set
for you, our customers, to try:
A: Whole series Shims sets including the both Bosch and Denso
shims:
* Ordering Code: TQ10 Set including B11/B12/B13/B14/B16/B22/B25/B26/B27/B31
- 10 models applied to both Bosch and Denso common rail injectors
- 10 types of most popular thickness of each model
- 10pcs for each thickness
in total 1,000pcs in the set
* Ordering Code: TD05 Set including B11/B12/B13/B14/B16/B22/B25/B26/B27/B31
- 10 models applied to both Bosch and Denso common rail injectors
- 10 types of most popular thickness of each model
- 5pcs for each thickness
in total 500pcs in the set
B: Shims sets for Bosch common rail injectors:
* Ordering Code: TB07 including B13/B14/B16/B22/B25/B26/B31
- 7 models applied for Bosch common rail injectors
- 10 types of most popular thickness of each model
- 10pcs for each thickness
in total 700pcs in the set
C: Shims sets for Denso common rail injectors:
* Ordering Code: TD04 including B21/B23/B24/B27
- 4 models applied for Denso common rail injectors
- 10 types of most popular thickness of each model
- 10pcs for each thickness
in total 400pcs in the set
FULL SET OF B11 SHIMS WITH 61 TYPES, 10PCS/TYPE, IN TOTAL 610PCS
| ITEM | ORDERING CODE | SIZE | QTY | PICTURE & SPECIFICATION |
| 1 | B12 | 0.900 | 10PCS |

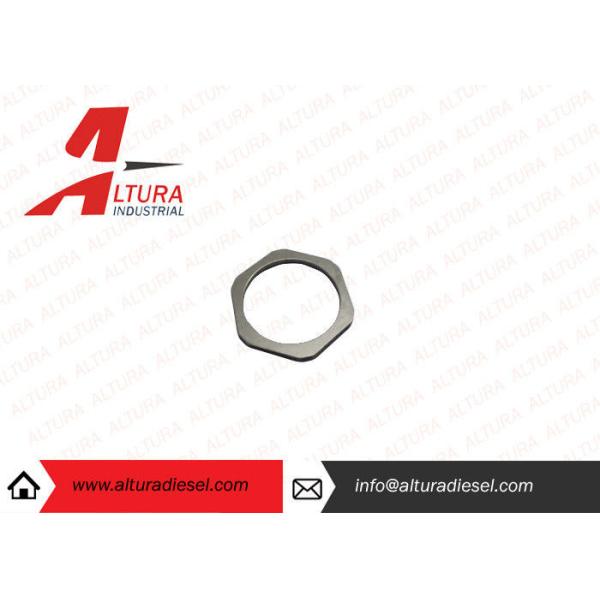

B12
SPECIFICATION: Φ18/S22 BOSCH
0.01MM DIFFERENCE/THICKNESS
0.900-1.500 MM(0.010±0.002)
IN TOTAL 61 THICKNESSES |
| 2 | B12 | 0.910 | 10PCS |
| 3 | B12 | 0.920 | 10PCS |
| 4 | B12 | 0.930 | 10PCS |
| 5 | B12 | 0.940 | 10PCS |
| 6 | B12 | 0.950 | 10PCS |
| 7 | B12 | 0.960 | 10PCS |
| 8 | B12 | 0.970 | 10PCS |
| 9 | B12 | 0.980 | 10PCS |
| 10 | B12 | 0.990 | 10PCS |
| | | | |
| 11 | B12 | 1.000 | 10PCS |
| 12 | B12 | 1.010 | 10PCS |
| 13 | B12 | 1.020 | 10PCS |
| 14 | B12 | 1.030 | 10PCS |
| 15 | B12 | 1.040 | 10PCS |
| 16 | B12 | 1.050 | 10PCS |
| 17 | B12 | 1.060 | 10PCS |
| 18 | B12 | 1.070 | 10PCS |
| 19 | B12 | 1.080 | 10PCS |
| 20 | B12 | 1.090 | 10PCS |
| | | | |
| 21 | B12 | 1.100 | 10PCS |
| 22 | B12 | 1.110 | 10PCS | |
| 23 | B12 | 1.120 | 10PCS |
| 24 | B12 | 1.130 | 10PCS |
| 25 | B12 | 1.140 | 10PCS |
| 26 | B12 | 1.150 | 10PCS |
| 27 | B12 | 1.160 | 10PCS |
| 28 | B12 | 1.170 | 10PCS |
| 29 | B12 | 1.180 | 10PCS |
| 30 | B12 | 1.190 | 10PCS |
| | | | |
| 31 | B12 | 1.200 | 10PCS |
| 32 | B12 | 1.210 | 10PCS |
| 33 | B12 | 1.220 | 10PCS |
| 34 | B12 | 1.230 | 10PCS |
| 35 | B12 | 1.240 | 10PCS |
| 36 | B12 | 1.250 | 10PCS |
| 37 | B12 | 1.260 | 10PCS |
| 38 | B12 | 1.270 | 10PCS |
| 39 | B12 | 1.280 | 10PCS |
| 40 | B12 | 1.290 | 10PCS |
| | | | |
| 41 | B12 | 1.300 | 10PCS |
| 42 | B12 | 1.310 | 10PCS |
| 43 | B12 | 1.320 | 10PCS |
| 44 | B12 | 1.330 | 10PCS |
| 45 | B12 | 1.340 | 10PCS |
| 46 | B12 | 1.350 | 10PCS |
| 47 | B12 | 1.360 | 10PCS |
| 48 | B12 | 1.370 | 10PCS |
| 49 | B12 | 1.380 | 10PCS |
| 50 | B12 | 1.390 | 10PCS |
| | | | |
| 51 | B12 | 1.400 | 10PCS |
| 52 | B12 | 1.410 | 10PCS |
| 53 | B12 | 1.420 | 10PCS |
| 54 | B12 | 1.430 | 10PCS |
| 55 | B12 | 1.440 | 10PCS |
| 56 | B12 | 1.450 | 10PCS |
| 57 | B12 | 1.460 | 10PCS |
| 58 | B12 | 1.470 | 10PCS |
| 59 | B12 | 1.480 | 10PCS |
| 60 | B12 | 1.490 | 10PCS |
| | | | |
| 61 | B12 | 1.500 | 10PCS |
Competitive Advantage:
- control product precision dimension within 0.002mm
- no less than 5 times from finishing process to finished product
- Reasonable Price
- Good after Service
- International standards
- Selected and used by research institutes
- Supplied to fuel injector manufacturers
- First choice for maintenance stations
- Ranking No.1 among the similar products in the market
Description:
Features of ALTURA high-precision adjusting shims:
1. Product precision
Precision is the key requirement for adjusting shims.Accurate
adjustment for fuel quantity si completed
depending on grouping of products.We adopt high precision optical
ruler to control lapping dimension,
and can control product precision dimension within 0.002mm.We
finish grouping by inspecting one product
with two products inside dustfree workshop.One product is measured
for no less than 5 times from finishing
process to finished product (Testing methods:use high precision
digital display micrometer to measure
conformity between actual dimension and required dimension,and
whether the dimension for same
grouped products is same or not.)
2. Geometric tolerance
Geometric tolerance of adjusting shims is directly related to the
maintenance quality of fuel injectors.Main
geometri tolerance requirement for adjusting shims is depth of
parallelism.Large shim will affect product
tightness while small shim will affect reliability and stability of
products.We adopt high-precision
double-sided lapping machine to ensure and control depth of
parallelism for products within 0.002mm.
Adoption of one-time forming process better ensures product
axiality(Testing methods:use parallelism
tester and deflection instrument to test parallelism depth and
axiality respectively)
3. Material quality and hardness
Material quality and hardness of adjusting shims affect durability
and stability of products.We choose
high quality material and advanced thermal treatment
equipments/technology.
4. Cleanliness
Product cleanliness can be better ensured due to multi-channel ultrasonic cleaning, dust-free workshop
packaging and plastic case sealed packaging.
